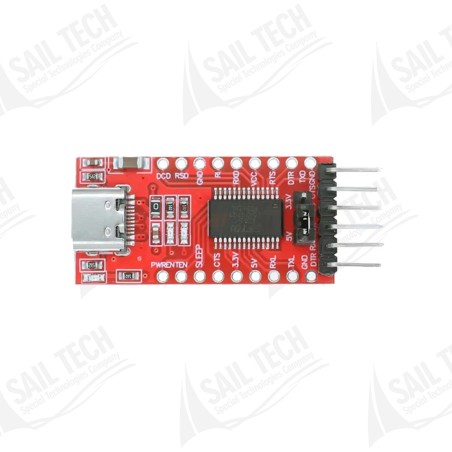

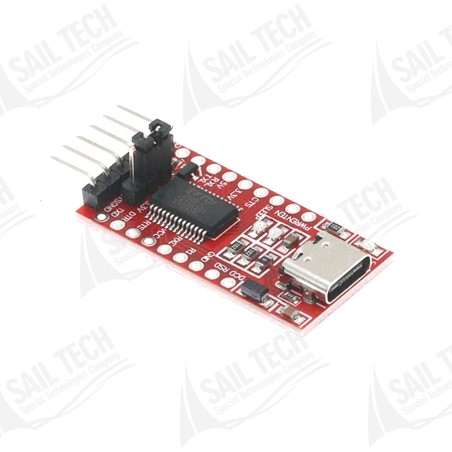

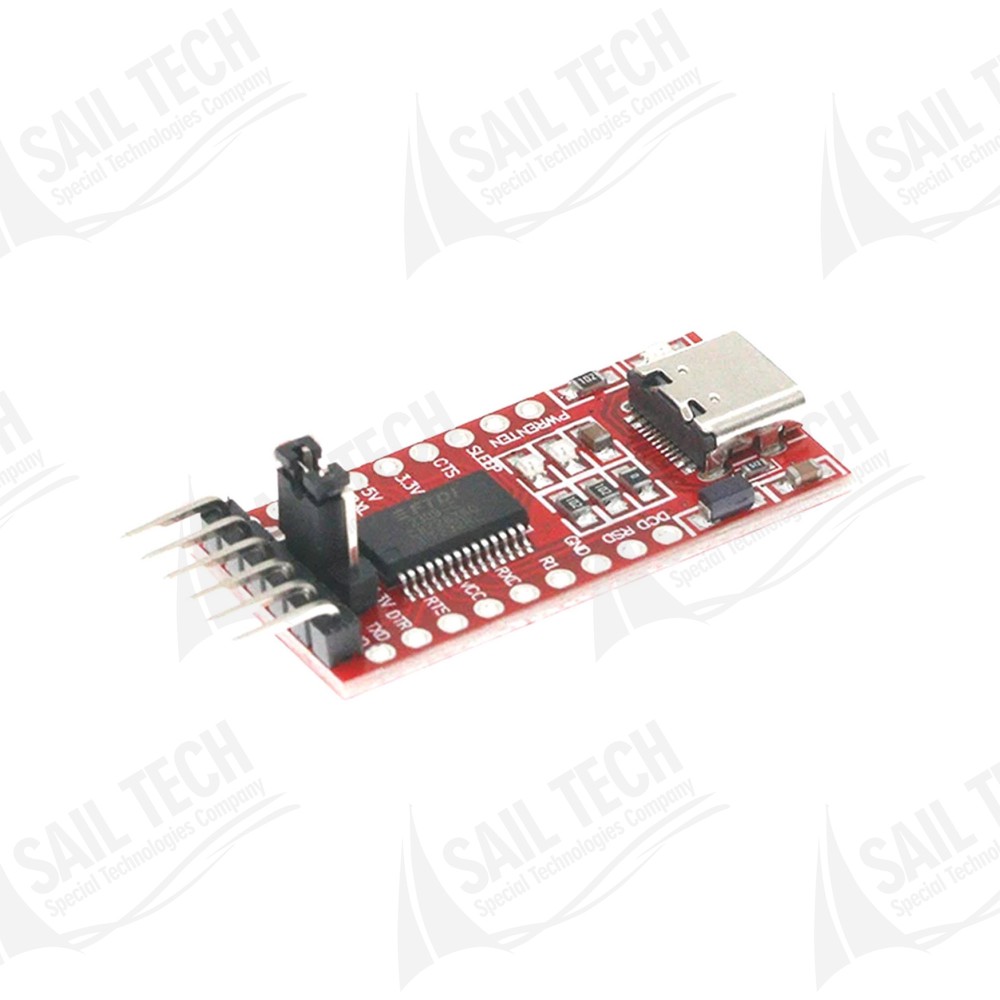

FT232RL USB Type-C to TTL UART Serial Converter Module

The FT232RL USB Type-C to TTL UART Converter Module allows you to convert your computer's USB connection into a TTL-level serial communication port. It is an ideal solution for establishing serial communication with Arduino, microcontrollers, GSM modules, satellite receivers, and other electronic devices.

Powered by the FT232RL chip, this module provides stable and reliable serial data communication via USB. With its USB Type-C connector, compact design, and selectable 3.3V / 5V logic levels, it is suitable for electronic development, programming, and testing projects.

Key Features

• FT232RL USB to TTL UART converter chip
• Modern USB Type-C connector
• Selectable 3.3V and 5V voltage levels
• TX and RX data communication LED indicators
• Power status LED indicator
• 6-pin male header connector
• Compact and lightweight PCB design
• Compatible with Arduino and various microcontrollers

Technical Specifications

• Chip: FT232RL
• USB Connection: Type-C
• Interface: TTL UART Serial Communication
• Voltage Selection: DC 3.3V / 5V
• Number of Pins: 6
• Pin Configuration: DTR, RXD, TXD, VCC, CTS, GND
• LED Indicators: Power, TX, RX
• Operating Temperature: -20°C to +65°C
• Dimensions: 18 x 36 mm
• Weight: 4 g
• PCB Color: Red

Applications

• Arduino and microcontroller projects
• UART serial communication applications
• GSM and GPS module communication
• Electronic board programming and debugging
• Satellite receivers and embedded systems
• USB-based serial data transmission and reception

Driver Installation

After installing the appropriate FTDI VCP driver, the FT232RL module appears as a virtual COM port on your computer. This COM port can be used with terminal software and other serial communication applications to send and receive data.

Official FTDI Driver Download: Download FT232RL VCP Driver

Pin Configuration

• DTR: Data Terminal Ready
• RXD: Receive Data
• TXD: Transmit Data
• VCC: Power Supply Output
• CTS: Clear To Send
• GND: Ground Connection

Important Note: This module is designed for TTL-level UART communication and is not directly compatible with standard RS232 voltage levels. Always verify the voltage requirements and pin configuration of your device before connecting.

Package Contents

• 1 x FT232RL USB Type-C to TTL UART Serial Converter Module
