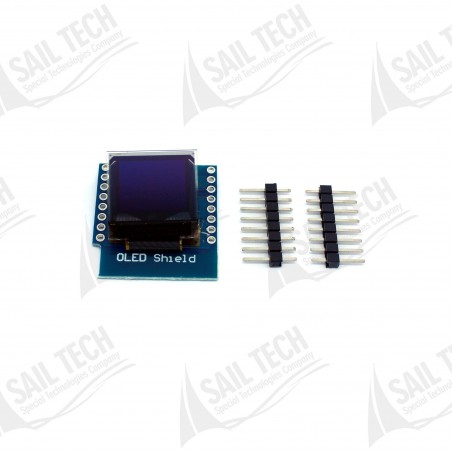

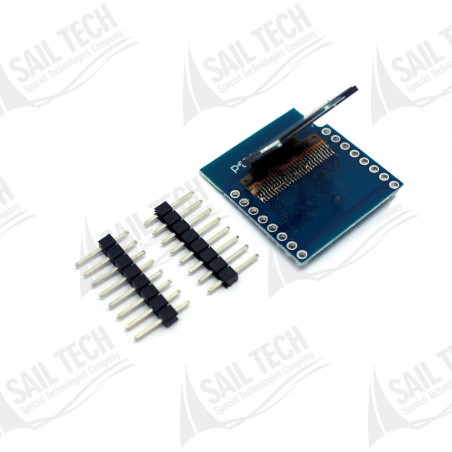

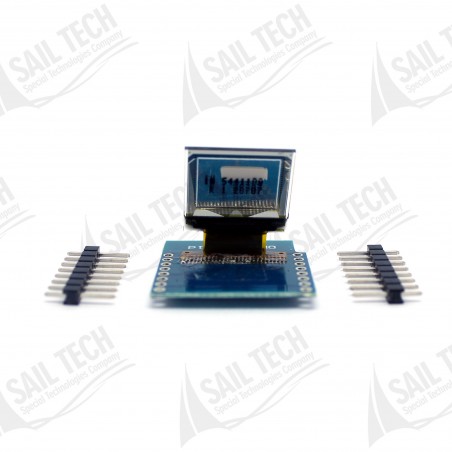

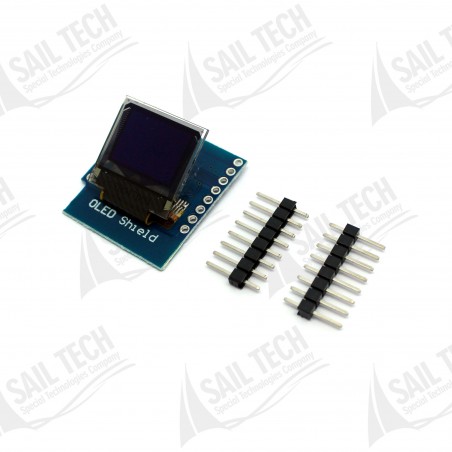

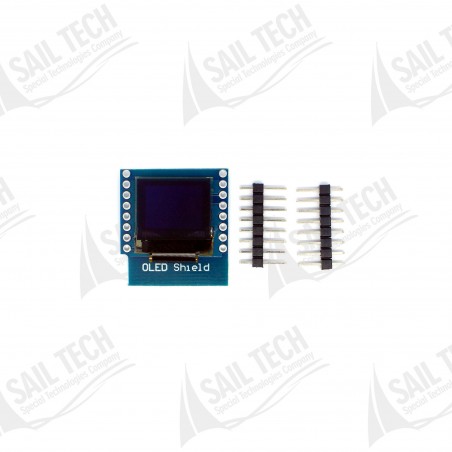

The 0.66 inch OLED module is an OLED display with a faster response time than TFT-LCD, the response time is only a few microseconds. It has low temperature characteristics and can be used normally even at minus 40°C.

The diode used in this product emits light spontaneously, so there is no need for a backlight source, the conversion efficiency is high, and the energy consumption is lower than that of liquid crystal.

It can be illuminated with a voltage of only 3.3V, and its brightness is quite high.

It has active lighting characteristics and a wide viewing angle. That is why the image does not deteriorate when viewed from different perspectives.

0.66 inch OLED Module Specifications:

• Screen Size: 64 x 48 pixels (0.66” diagonal).
• Working voltage: 3.3V.
• IC Driver: SSD1306.
• Interface: IIC(I2C).

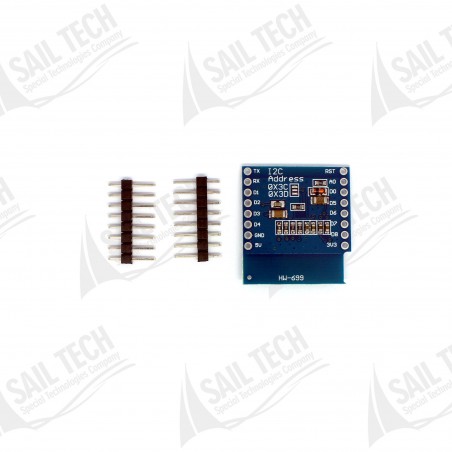

• IIC Address: 0x3C or 0x3D.

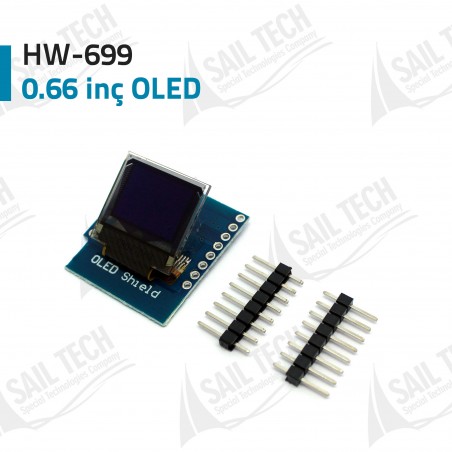

• Model: HW-699
• Warning: All inputs and outputs are designed to be 3.3V

Package Contents:

• OLED Display Module
• OLED Shield 0.66" inch
• 64x48 LCD modüle
