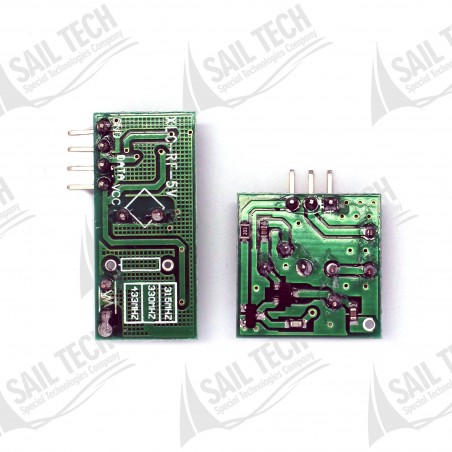

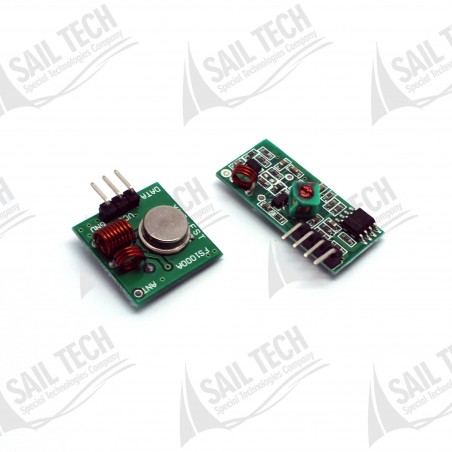

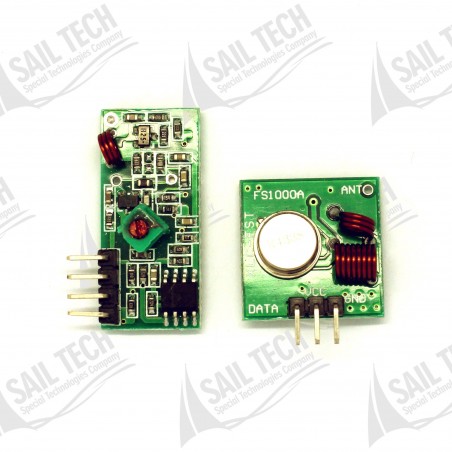

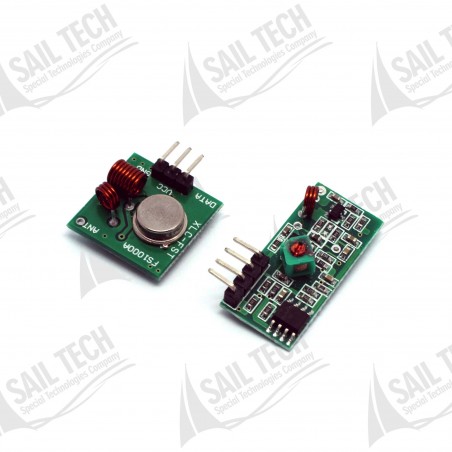

This 433 Mhz RF kit (Transmitter - Receiver) consists of a transmitter and a receiver module. You can develop wireless applications with this RF kit, and at the same time, you can easily adapt this receiver and transmitter kit, which was developed for low-cost wireless communication, to your projects. The communication distance is 20-200 meters.

Communication distance may vary according to ambient conditions. Suitable for use with Arduino or any microcontroller. If you wish, you can install an external antenna to increase the communication distance.

Application Areas:

• Low-budget electronic applications
• Home and building automation
• Remote control
• Garage and door open and close systems
• Wireless lamp control
• Keyless entry systems
• Industrial control applications
• And other wireless applications

Features:

• Receiver model: MX-05V
• Receiver working voltage: 5VDC
• Current: 4 mA
• Frequency: 433.92Mhz
• Sensitivity: -105 db
• Antenna: Heliciform shape

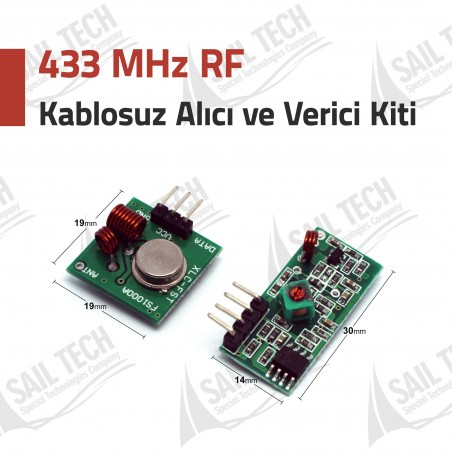

• Size: 30x14x7mm
• Transmitter Model: MX-FS-03V
• Transmitting distance: 20-200 meters
• Transmitter working voltage: 3.5-12V
• Size: 19x19x7.4mm
• Transmitting speed: 4 KB/s
• Transmitting power: 10mW
• Frequency: 433MHz
• Antenna: Single or multi-core wire
• Example Arduino Application

Package Contents:

• 1 x 433MHz RF Transmitter
• 1 x 433MHz RF Receiver
