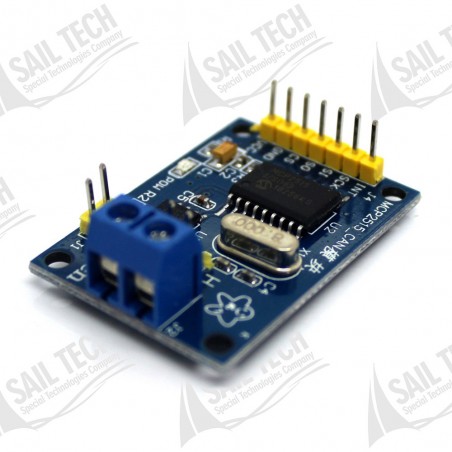

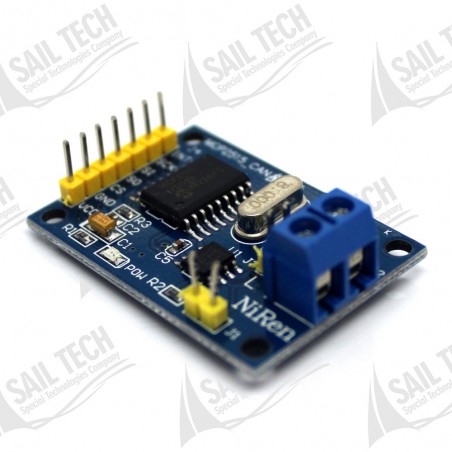

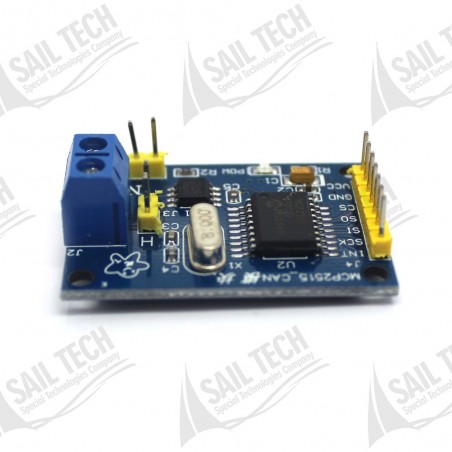

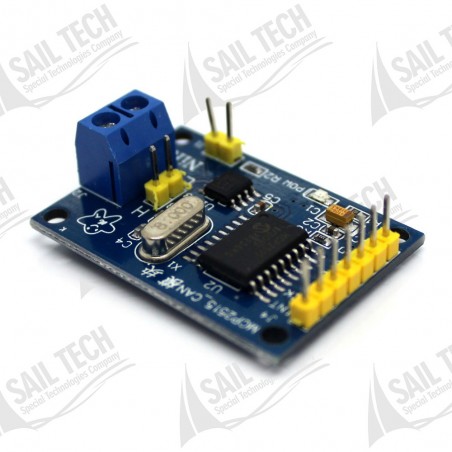

MCP2515 CANBUS-SPI Module

MCP2515 CANBUS-SPI Module

$3.00

It is based on the MCP2515 CAN controller with SPI interface and the TJA1050 CAN transceiver.

This card, which has an integrated MCP2515 CAN-SPI converter, performs the same function as the CANBUS Shield.

Quantity

  • Secure Payment Secure Payment
  • Fast Delivery Fast Delivery
  • Easy Returns Easy Returns
  • Satisfied Customer Satisfied Customer

It is based on the MCP2515 CAN controller with SPI interface and the TJA1050 CAN transceiver.

This card, which has an integrated MCP2515 CAN-SPI converter, performs the same function as the CANBUS Shield.

Features ;

  • Supports CAN 2.0B protocol, communication speed 1Mb/S
  • It uses high-speed TJA1050 CAN transceiver integrated
  • Expandable SPI connection for CAN interface
  • 8 MHz crystal oscillator
  • 120 Ω terminal resistance
  • Dimensions: 40×28mm
  • Working Temperature: 85℃- 40℃

Pinout ;

  • VCC: 5V power input pin
  • GND: power ground pin
  • CS: SPI SLAVE select pin (Active low)
  • NAMELY: SPI main input slave output cable
  • SI: SPI master output slave input cable
  • SCLK: SPI clock pin
  • INT: MCP2515 cutting pin

Package Contents ;

    • MCP2515 CAN BUS Module with TJA1050 Transceiver


Breadboard 830 Pin Large Size Arduino-PIC

  • Breadboard 830 Pin Large Size Arduino - PIC
  • Breadboard offers the possibility to test circuits by creating them faster. In this way, it prevents loss of time by dealing with processes such as soldering, printed circuit board.
  • It can be used again and again. It also provides easy operation thanks to color coordinate information.
  • Ideal for Arduino or similar prototype circuit development work.
  • Suitable for high frequency circuits (Low noise level).
  • With its interlaced structure, it has the ability to use more than one side by side.
  • Board Material: White ABS plastic
  • Board Floor: Bottom Base with Adhesive Tape
  • Pin Spacing: December 2.54mm/0.1"
  • Connection Type: Double leaf copper spring
  • Extension Clips: Yes (Can be extended with other boards)
  • Size: 16.4cm x 5.2cm x 0.9cm
  • 30 rows x 10 columns
