Sail Meter EC-600S Automotive Paint Thickness Gauge

Sail Meter EC-600S Automotive Paint Thickness Gauge

$199.00

The automotive paint thickness gauge is designed to non-destructively measure the thickness of paint and coatings on vehicle surfaces. The EC-600 series, thanks to its magnetic induction and eddy current principles, provides highly accurate measurements on iron, galvanized sheet metal, aluminum, and stainless steel surfaces. With one-button operation, Bluetooth data transfer, and automatic surface recognition features , the automotive paint thickness gauge offers fast and reliable results in automotive inspections and bodywork checks.

Quantity

International Shipping (We ship Worldwide)

Delivery: Delivery Within 3-5 Days:

Shipping Carriers:

  • Secure Payment Secure Payment
  • Fast Delivery Fast Delivery
  • Easy Returns Easy Returns
  • Satisfied Customer Satisfied Customer

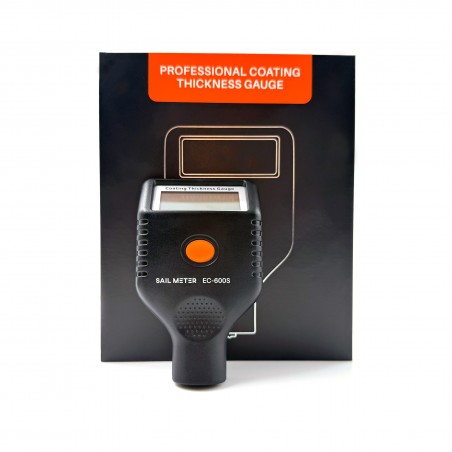

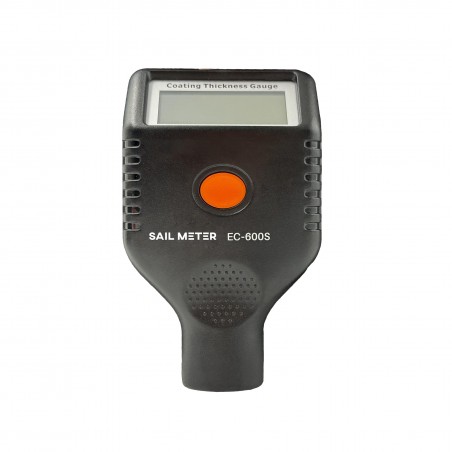

Sail Meter EC-600S

The Sail Meter EC-600S paint thickness gauge is a practical and fast solution in its class for automotive inspections, bodywork and paint services, and quality control processes . It operates with a single button; the only thing required of the user during measurement is to quickly bring the probe tip into contact with the surface to be measured. During the inward contraction movement of the probe, the device automatically distinguishes the substrate properties and reliably measures the thickness of the coating/paint layer on the surface.

One-Touch – Fast Measurement – ​​Easy to Use

EC-600S
paint thickness measuring device

Strong Parasite Prevention
Stable Measurement in Challenging Environments

The EC-600S series paint thickness gauge can operate stably even in environments with more complex electromagnetic fields thanks to its robust anti-interference structure. This provides a critical advantage in paint thickness gauge selection for areas such as service environments, workshops with heavy equipment use, or industrial sites .

Large Memory and Expertise Record
Professional Paint Gauge

The EC-600S paint thickness gauge doesn't just take measurements; it speeds up the process by creating expert records of every measurement you take. It automatically counts the results during measurement and neatly records them in its high-capacity memory. This ensures a professional paint thickness gauge experience, allowing you to take measurements from multiple points on your vehicle, such as doors, fenders, roofs, and pillars, without missing any data .

paint thickness measuring device

Sailmeter EC-600 SP Technical Specifications

Model number EC-600 S-P Privatization support OEM / ODM / OBM
Warranty period 1 year Measurement principle Fe: Magnetic induction
NFe: Eddy current
Measurement range Optional Truth ± (2% + 1 µm)
Resolution 0.1 µm (0 ~ 99.9 µm)
1 µm (≥ 100 µm)		 Unit of measurement µm / mm / mil
Calibration Zero calibration Point calibration USB data transfer Supported
Protection class IP40 Dimensions 101 × 64 × 25 mm
Power supply 2 x 1.5V AAA alkaline batteries

Comparison Table of EC-600 SP and EC-600 SX-P Dye Measurement Sailmeters

ModelEC-600 S-PEC-600 SX-P
Measurement principle Fe: Magnetic induction | NFe: Eddy current
Measurement range 0 ~ 2000 µm
Truth ± (2% + 1 µm)
Resolution 0.1 µm (0 ~ 99.9 µm) | 1 µm (≥ 100 µm)
Unit µm, mm, mil
Iron powder paste recognition range 0 ~ 2000 µm
Galvanized iron identification range 3 ~ 1000 µm
User calibration method Zero calibration
Probe trigger force 0,5 ~ 1,2 N
Minimum surface curvature radius Convex: 5 mm | Concave: 25 mm
Minimum measurement area Diameter: 15 mm
Minimum substrate thickness Fe: 0,20 mm  |  NFe: 0,03 mm
Response time Less than 0.5 seconds
Screen type Dot matrix LCD screen Dot matrix OLED display
USB data transfer Supported
Bluetooth / App Supported
Operating temperature -10 ~ +50 °C -40 ~ +50 °C
Storage temperature -20 ~ +60 °C -50 ~ +60 °C
Power supply 2 x 1.5V AAA alkaline batteries | 2 x 1.2V AAA rechargeable batteries
Protection class IP40
Dimensions 103 × 62 × 27 mm
Case material ABS
Weight Approximately 60 g (excluding batteries)
