Sail Meter EC-570P Automotive Paint Thickness Gauge
$149.00
Sail Meter EC-570P is a high-precision, non-destructive paint thickness gauge designed specifically for automotive body inspection. It delivers fast, accurate, and reliable measurements of paint, varnish, galvanization, and coating thickness on vehicle body panels, making it an essential tool for professional vehicle inspection.
-
Secure Payment
-
Fast Delivery
-
Easy Returns
-
Satisfied Customer
Sail Meter
EC-570P Car Body Paint Thickness Gauge
The Sail Meter EC-570P is a high-precision, fully non-destructive professional measuring device developed for automotive paint thickness inspection.
It ensures a flawless appraisal process by quickly and reliably measuring the thickness of paint, varnish, galvanization, and coatings on metal surfaces.
✓ Fully Non-Destructive
✓ Auto Substrate Recognition
✓ Fast & Reliable Measurement
Advanced Measurement Technology
Combining advanced magnetic induction and eddy current technologies within a single ruby-tipped smart probe, the EC-570P automatically detects various substrates such as iron, steel, stainless steel, aluminum, and copper to deliver instant, accurate results.
Quick Summary
Automatic substrate recognition without manual adjustment.
Fast reading for paint / varnish / galvanize / coating thickness.
Clearly identifies original vs. repainted vs. filled surfaces.
Key Features
One-touch operation

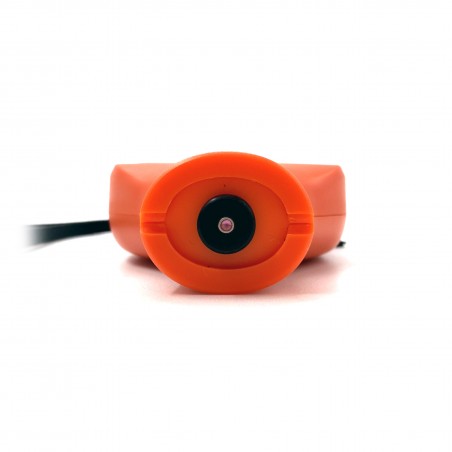

Probe
Ruby Probe
Highly wear-resistant for long-lasting and stable measurements.
Range
0 – 2000 μm
Ideal wide measurement capacity for car bodies.
Accuracy
±(3% + 1μm)
Professional-grade appraisal precision.
Resolution
0.1 μm
Clear measurements at the micro level.
Display
Dual Display
Large LCD on the front + OLED screen on top.
Connectivity
Bluetooth & USB
Easily transfer data to your computer.
Automation
Auto Substrate Recognition
Accurate results without manual calibration.
Operation
One-Touch Use
Fast, practical, and error-free measuring experience.

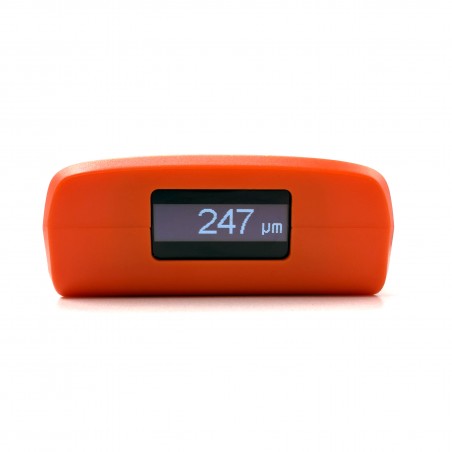

Dual Display Advantage
Maximum viewing comfort during measurement
The EC-570P offers maximum viewing comfort thanks to its dual-screen design. While the large front LCD is ideal for standard use, the top OLED display provides a significant advantage for measuring in tight spaces or on inclined surfaces.
• Easy reading in tight spaces
• Advantage on inclined surfaces
• Rapid inspection workflow
Smart Measurement & Memory System
The device automatically counts and saves all measurements to its memory. It ensures organized logging for multi-point inspections on hoods, doors, fenders, roofs, and pillars. Recorded data can be transferred to a computer via USB or Bluetooth.
Organization
Multi-point measurement tracking
Enables consistent recording and reporting by measuring panel by panel.
Transfer
USB / Bluetooth Data Transfer
Export measurements to a PC, archive them, and accelerate your workflow.
Usage
Fast, practical, error-free
One-touch operation saves time during intense appraisal schedules.
Technical Specifications
| Feature | Value |
|---|---|
| Measuring Range | 0 – 2000 μm |
| Accuracy | ±(3% + 1μm) |
| Resolution | 0.1 μm |
| Probe | Ruby-tipped smart probe |
| Display | Large LCD + Top OLED |
| Connectivity | Bluetooth & USB |
| Substrate Recognition | Automatic |
| Measuring Technology | Magnetic Induction + Eddy Current |
Application Areas
Sail Meter EC-570P is the ideal solution for auto appraisal firms, dealerships, insurance adjusters, service centers, and professional individual users. It reliably measures paint, varnish, and coating thickness to clearly distinguish between original, repainted, and filled surfaces.
• Auto Appraisal Centers
• Car Dealerships
• Insurance Adjusters
• Service Centers
• Professional Individual Use

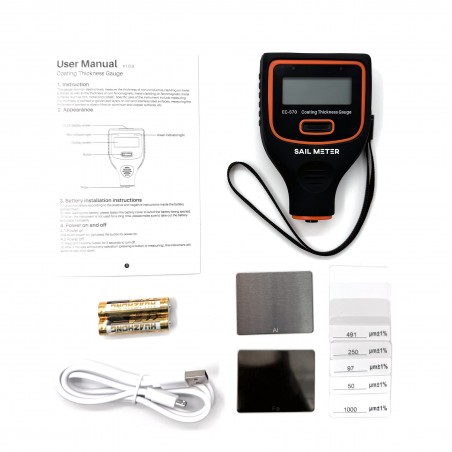

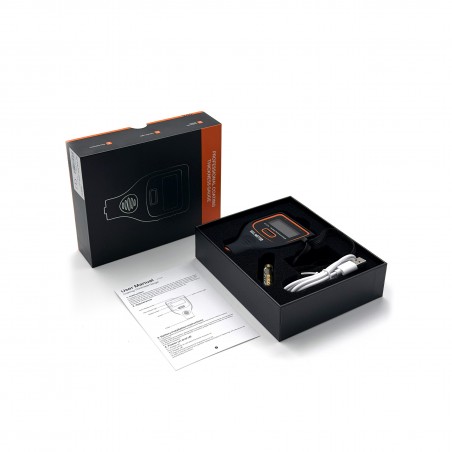

Package Contents
