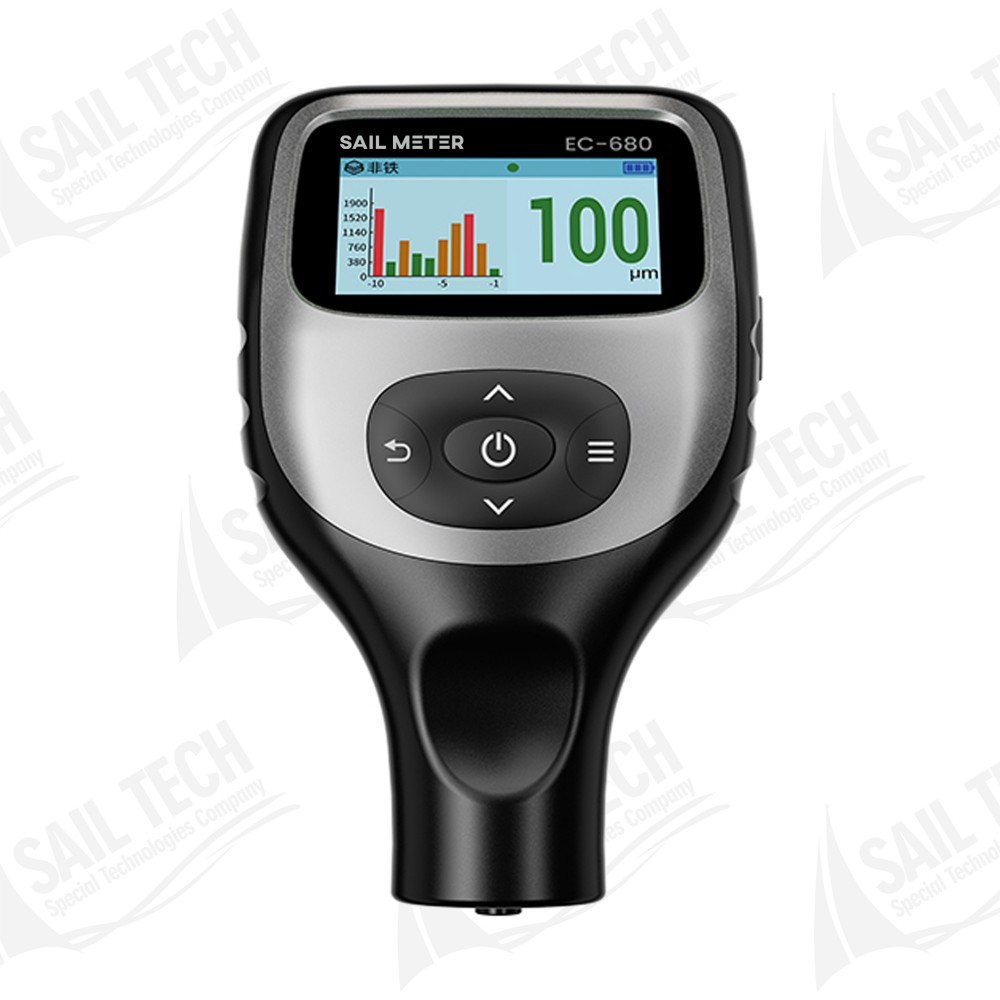

Sail Meter EC-680 Professional Automotive Bodywork and Paint Gauge
$199.00
Sail Meter EC-680 is a professional coating thickness gauge developed for precise measurement of paint, galvanized coatings, and various coating thicknesses on metal surfaces, especially for automotive body and paint inspection
-
Secure Payment
-
Fast Delivery
-
Easy Returns
-
Satisfied Customer
Sail Meter EC-680 Professional Automotive Paint Thickness Gauge
Sail Meter EC-680 is a professional coating thickness gauge developed for precise measurement of paint, galvanized coatings, and various coating thicknesses on metal surfaces, especially for automotive body and paint inspection.
With its wide 0 – 5000 μm measuring range, it can be used not only for standard paint inspections but also for detecting thick coatings and body filler. Thanks to its Fe and NFe dual measurement technology, it automatically detects ferrous, steel, aluminum, and other non-ferrous metal surfaces.
Key Features
0 – 5000 μm Measuring Range Suitable for measuring automotive paint, galvanized coatings, and thick coating surfaces.
Automatic Fe / NFe Detection Automatically distinguishes between ferrous and non-ferrous metal surfaces.
Fast Measurement Provides quick and convenient inspection with a response time of less than 0.5 seconds.
Bluetooth Connectivity Measurement data can be transferred wirelessly through the supported mobile application.
HD Color Display The color graphic display makes it easy to monitor measurement values and statistics.
Ruby-Tipped Probe The wear-resistant integrated ruby probe is designed for long-term professional use.
Professional Automotive Inspection
The Sail Meter EC-680 helps measure paint layers on vehicle body panels. It makes it easier to identify differences between factory paint, repainted surfaces, and areas with thick filler or body putty.
The device also features galvanized surface and ferrous body filler detection. This function enables detailed evaluations during used vehicle inspections, automotive appraisal, bodywork inspection, and professional workshop applications.
Technical Specifications
| Measuring Principle | Fe / NFe magnetic and eddy current dual-sensor technology |
| Measuring Range | 0 – 5000 μm |
| Accuracy | 0–2000 μm: ±(2% + 1 μm) 2001–3000 μm: ±3% + 2 μm Above 3000 μm: ±5% + 2 μm |
| Resolution | 0.1 / 1 / 10 μm |
| Measurement Units | μm, mm, mil |
| Display | HD color graphic LCD display |
| Connectivity | Bluetooth mobile application, Type-C USB data transmission |
| Probe | Wear-resistant integrated ruby probe |
| Detection Functions | Galvanized surface and ferrous body filler detection |
| Response Time | Less than 0.5 seconds |
| Calibration | Zero calibration function |
| Power Supply | 2 × AAA 1.5V alkaline batteries |
| Additional Functions | Automatic power-off, low battery protection, statistical data display, USB firmware update |
| Operating Temperature | -10°C ~ +50°C |
| Storage Temperature | -20°C ~ +60°C |
| Protection Rating | IP40 |
| Dimensions | 108 × 67 × 28 mm |
| Weight | Approx. 64 g |
