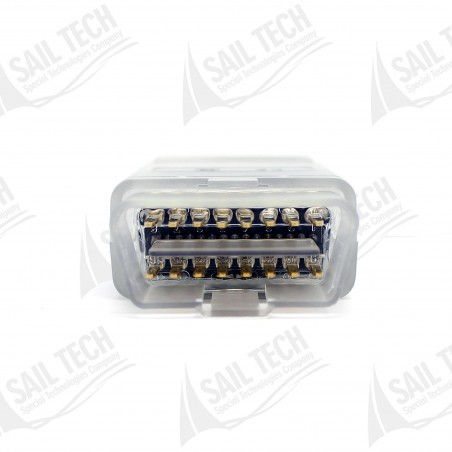

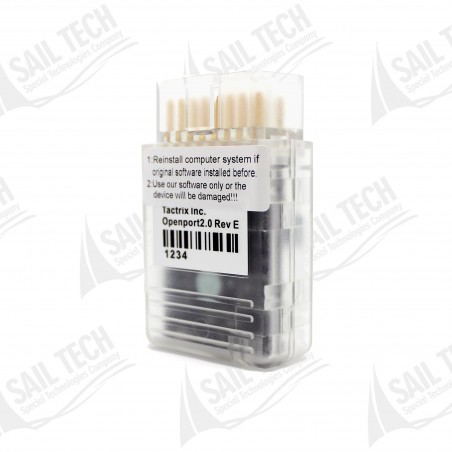

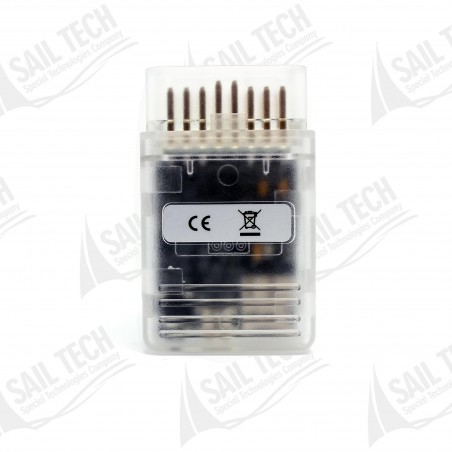

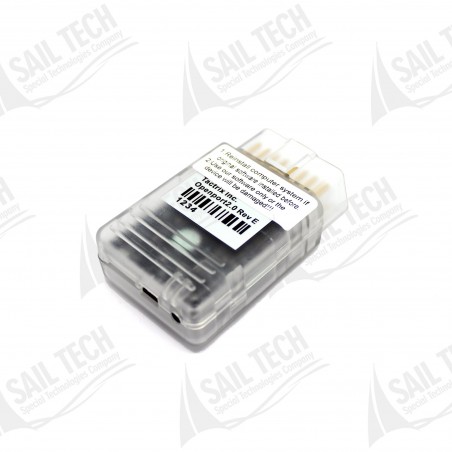

OpenPort 2.0 is a tuning tool hardware that can communicate with most OBDII compatible vehicles using a standard J2534 interface. Paired with the EcuFlash software, OpenPort 2.0 possesses the capability to reflash a multitude of new Subaru and Mitsubishi vehicles. Every OpenPort comes with a USB cable, and unless you have one of the few cars that require a separate reflash adapter, this is all the hardware you need. For Subaru, you'll only need a reflash adapter for the 2001-2005 WRX, unless you're not working on a non-USDM early STi, in which case you might need one of our WRX adapters. No other Subaru vehicle, including Forester, Baja, Legacy, or naturally aspirated Impreza models, requires a reflash adapter. For Mitsubishi, you'll need an adapter for most pre-CAN vehicles, including Evos 5-9. Select the required adapter from the 'Reflash Adapters' list below.

Features

72Mhz 32-bit processor.

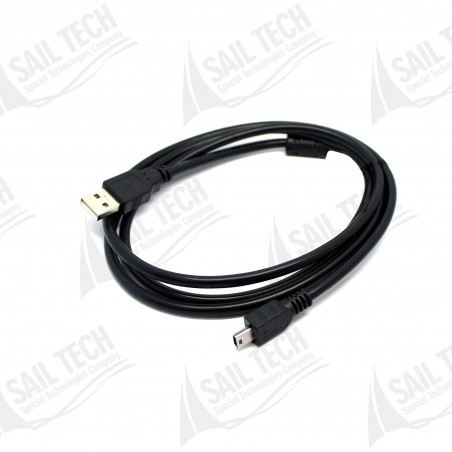

USB 2.0 full-speed device (USB-A/Mini cable included).

Software upgradeable in the field.

Support for J2534 PassThru with Windows DLL.

Independent datalogs to microSD/microSDHC card without a laptop.

Ability to apply GND or 5V-25V to OBD pins 1,3,9,11,12,13 or to AUX 2.5mm stereo connector.

Can record from Innovate Motorsports 2.5mm stereo MTS data bus.

RGB status LEDs.

Successfully tested with these software: Chiploader, MMC Flasher, Multiflasher, PCM Flash, Toyota Techstream, and others.

Supports these major OBD protocols:

• CAN 2.0 (CAN/ISO15765).
• K-line (ISO9141/ISO14230(KWP2000)/dual K line).
