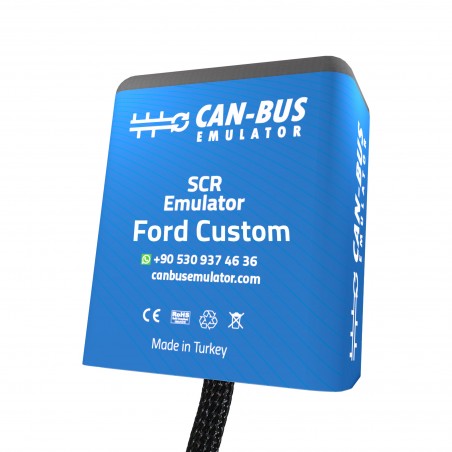

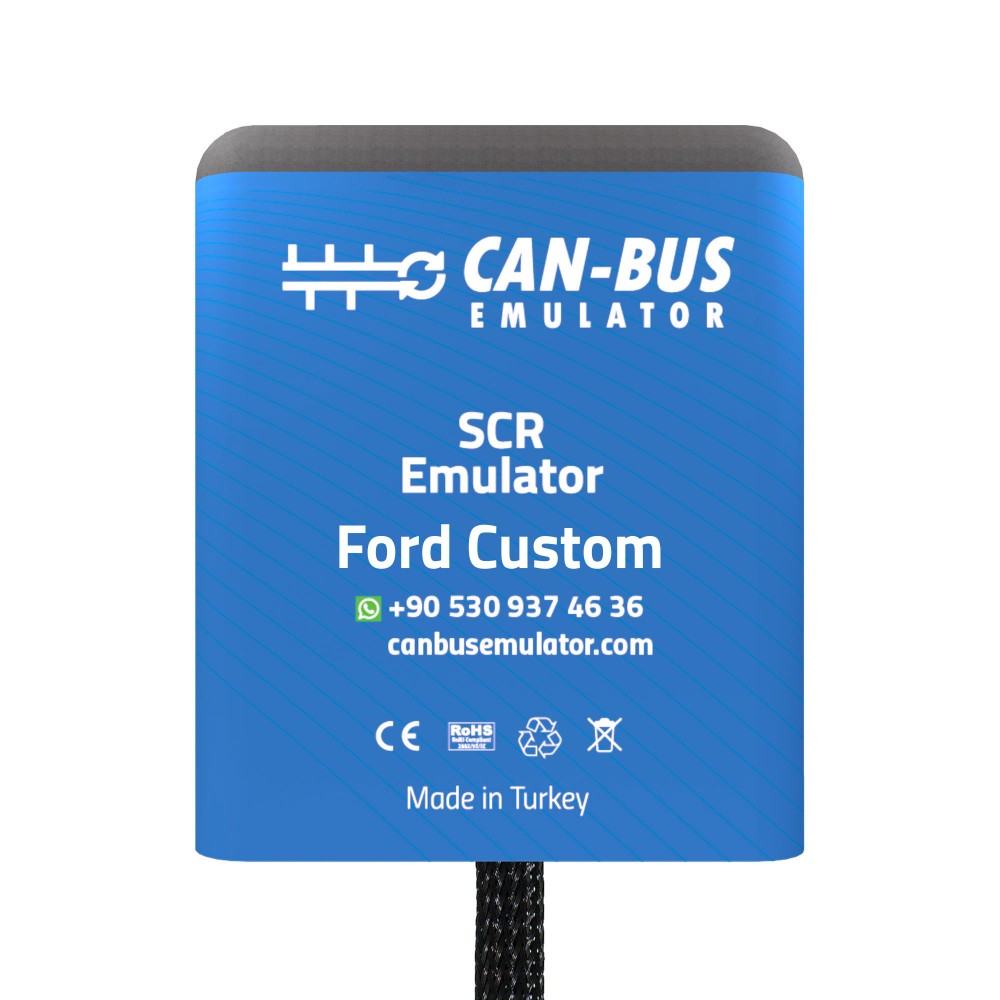

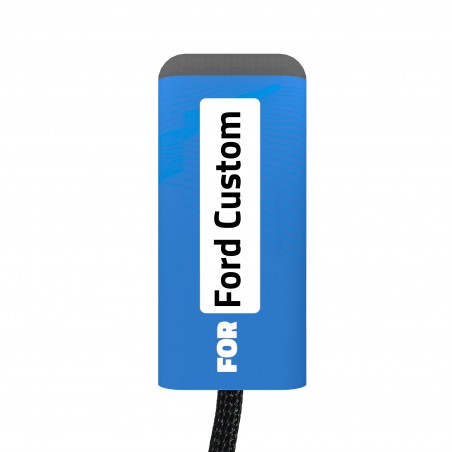

Ford Custom SID212 Euro 6 Adblue (SCR+DPF) Cancellation Module

Specifically designed for Ford Custom SID212 Euro 6 vehicles, this Adblue Cancellation Module effectively disables the vehicle's SCR and DPF systems and sets the engine management system to ignore the requirements of these systems. This module maintains or increases the vehicle's performance and fuel efficiency while eliminating the extra costs and maintenance required by SCR and DPF systems.

Advantages:

Fuel Saving: Disabling SCR and DPF systems may lead to a reduction in fuel consumption.

Reduced Maintenance Costs: Elimination of the need for regular Adblue refills and DPF maintenance reduces operational costs.

System Simplification: The engine management system becomes less complex, which can increase the reliability and ease of maintenance of the vehicle.

Note:
Our emulator is suitable for AdBlue and DPF removal on vehicles that are operating without any existing faults, and it can be installed directly without requiring a DPF reset.
If the vehicle’s DPF filter has been physically removed or broken, the emulator provides a 100% effective solution, ensuring that the DPF soot level will not increase.

Important Points:
If the exhaust temperature sensor, PM sensor, inlet NOx sensor, AdBlue level sensor, or dosing pump module is faulty, these components must be replaced or the DCU unit must be corrected using ECU flashing or appropriate diagnostic software tools.
Since no software intervention is performed on the SID212 engine ECU, the DPF section is resolved fully by the emulator.
For issues caused by the DCU or its related components, the problem can be resolved by performing software calibration and parameter adjustments in the exhaust control unit.
If you disable the AdBlue system by applying software updates or parameter modifications to the DCU, Online FDRS is no longer required.

Installation Steps:

• All fuses must be checked before installation.
• Turn off the ignition and wait 10 minutes before starting the installation.
• Follow the emulator wiring/connection documentation carefully.
• If the DCU has been flashed with software, the CAN lines 21 and 43 on the DCU must not be cut.

Fuse Checks:
Fuses 13, 34, and 39 belong to the AdBlue and DPF system.
These fuses must be checked before installation and replaced if they are not working.
