TP4056 Lithium Battery Charge Module Micro USB
$0.75
The charging current is set at 1A. Most phone/USB chargers today give 1A and above. To be sure, you can look at the values on the phone charger. If you want, you can change the current value by changing the resistance.
-
Secure Payment
-
Fast Delivery
-
Easy Returns
-
Satisfied Customer

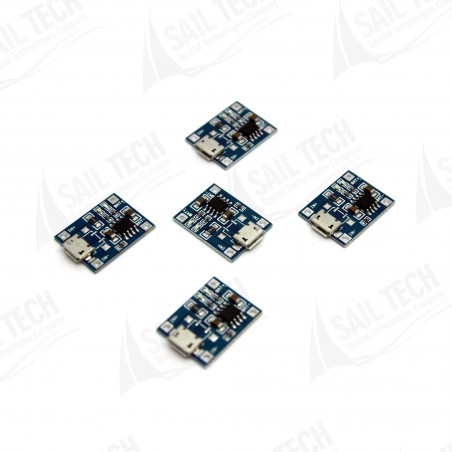

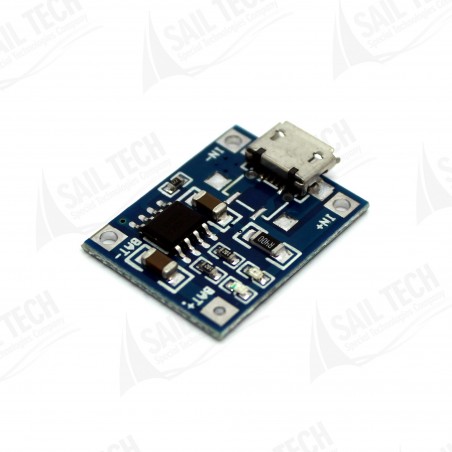

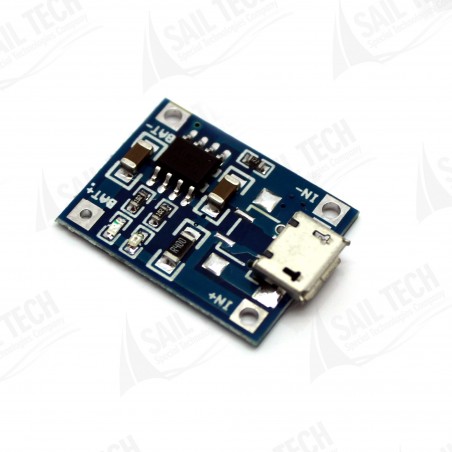

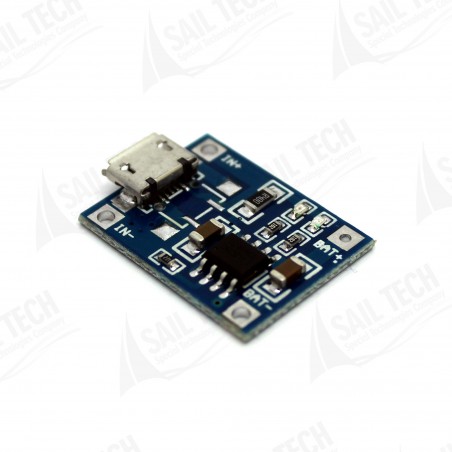

TP4056 Shielded Lithium Battery Charging Module
The TP4056 charger is a small-sized and economical battery charging module with a micro USB port on which you can charge lithium batteries via USB.
This module is made of Smd materials.
It has a self-regulation current feature.
It can charge between range 100mA and 1000mA.
The charging current is set to 1A. Already today most phone/USB chargers give 1A and above. To be sure, you can look at the values on the phone charger. If you want, you can change the current value by changing the resistor.
The TP4056 Protected Lithium Battery Charging Module receives its supply voltage from the supply input pads on the micro USB or card. The test current can be measured by the input. The charging current should be up to 0.37 of the battery capacity. A 1A battery is convenient to charge with 0.4A.
Charging with high currents in a shorter time can damage the battery. The wires to be used in the supply and battery connections must be of good quality. Poor quality cables will affect the charging current due to the resistance it will show.
The red LED indicator is working during charging. When the charge is finished, the green indicator LED lights up and it is understood that the charge is finished.
When using the TP4056 charging module, make sure that the charging voltage is not above 5V. The supply voltage to rise above 5V causes heat. This in turn causes the charging current to decrease. the integrated temperature of 60 degrees is normal.
Technical Specifications:
TP4056 lithium charger integrated
Charging method: CCCV
Micro USB port
External input supply pads (IN+ and IN-)
5V Input voltage
4.2V charging voltage
-10"C - 85"C Operating temperature
The charging current is 1000mA (Can be changed from 100-1000mAh range by resistor change.)
1.5% charging accuracy
The red "charging is underway" led.
The green "charging is over" led.
Reverse connection protection: Yes
Protection integrated: S8205A
Over discharge protection voltage: 2.5V
Overcurrent protection: 3A

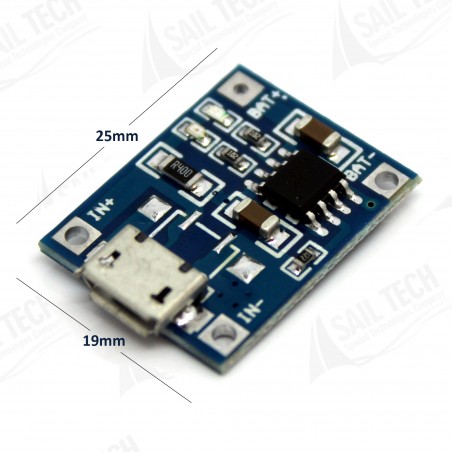

Card sizes 25-19-10mm
