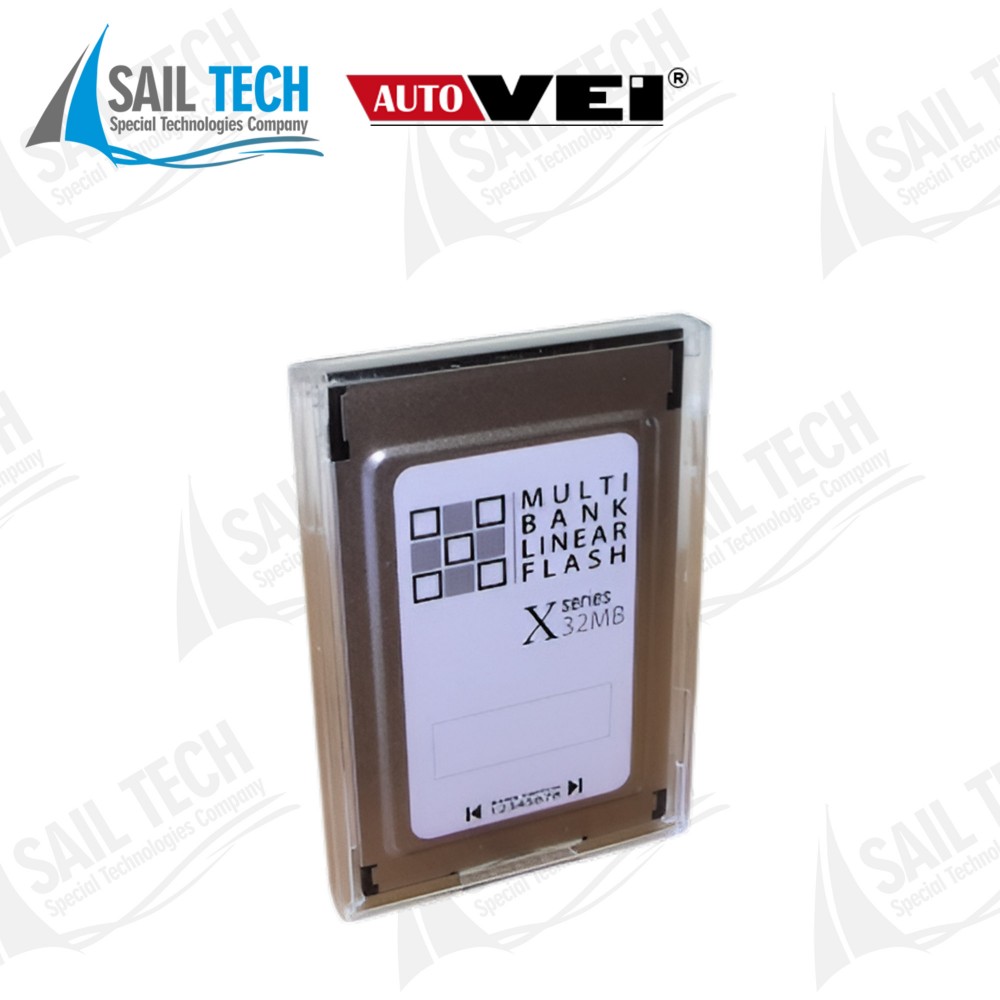

Multi-Bank Linear Flash Memory Card for ECH2 8x32MB

Serial X INTEL/SHARP 28F160 (Features and Flash programming algorithm compatible with Tech2, Hi-Scan (Hyundai KIA), CarmanScan 1.)

Features:

• Proven compatibility with popular industry-standard Flash File Systems (FFS) or Flash Translation Layer.
• Applications: PC, PDA, PCA, Industrial Control, Standalone automotive diagnostic systems, medical systems, Embedded Systems, instrumentation, Communication.
• Supports Erase, Suspend and Read command as a background task.
• Mechanical Write protect switch does not work.
• Very low power consumption with automatic power management.
• No battery required for data retention or backup. Safe 20-year data guarantee.

PCMCIA Type II form factor
Extremely rugged and reliable
Industry standard PCMCIA 1.0

Flash Features:

• Compatibility: Common Flash Interface (CFI)
• CIS in ROM: customized feature cards (Standard feature programmed by specification. Customized feature available upon customer request.)
• Flash Type: LH28F016 (TOSHIBA) emulation

Capacity:

• Flash memory capacity per bank: 32 MB
• Number of banks: 8 units
• Total Flash memory capacity: 256 MB
• One attribute (read only): 2 kB

Performance:

• High-performance read access: 115 ns
• First access time: 105 ns
• Simultaneous 16-word page read: 25 ns
• Conventional Word Programming (max.): 320 μsec
• Random Word Programming (max.): 460 μsec
• Program suspend: 20 μsec
• Erase suspend: 20 μsec
• Block erase: 3 seconds

Reliability:

• 100,000 write/erase cycles per card (min.)

Electrical Characteristics:

• Operating Voltage Read: 5 Volt ± 5%
• Operating Voltage Write/Erase: 5 Volt ± 5%

Power Consumption:

• Read access: 110 mA (max.)
• Write/Erase: 70 mA (max.)
• Standby mode: 1.5 μA (max.)

Operating Environment:

• Operating temperature: 0 to 70° C
• Storage temperature: -40 to 125° C
• Relative Humidity: 95% (max.), non-condensing

Physical Dimensions:

• Type II card: 87 x 54 x 5 mm (LWH)
• Weight: 42.5 g
