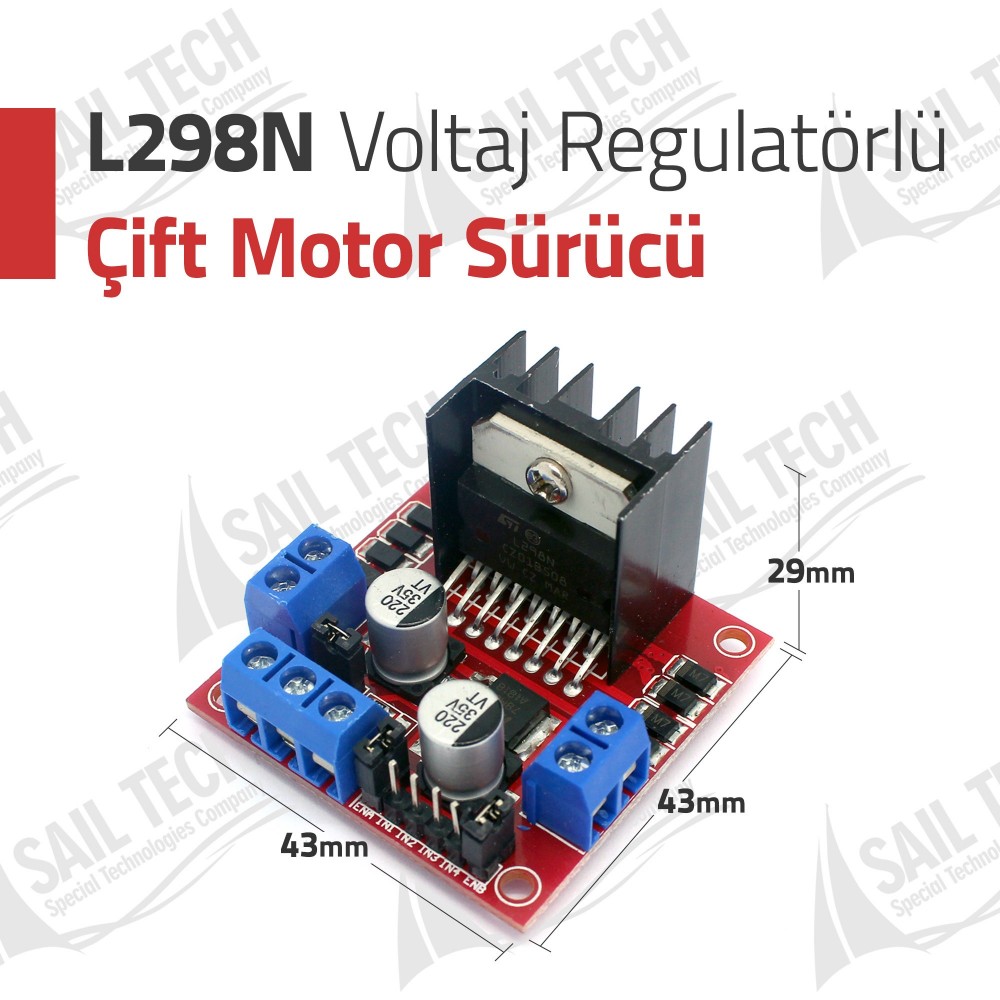

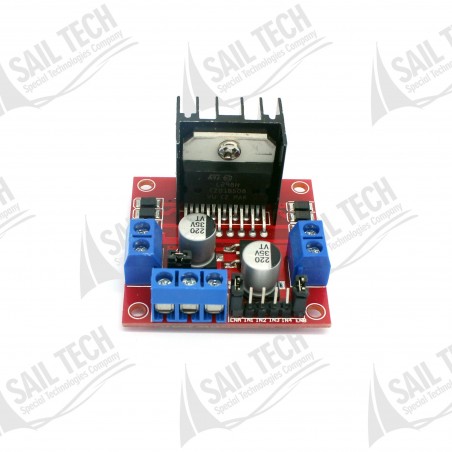

This motor drive board, which is designed to drive motors up to 24V, has two channels and provides 2A current per channel.

L298N motor drive integrated system is used on the card. It can be used in sumo, mini sumo, line tracking robots and a wide variety of motor control applications.

Features:

• It can control two separate motors independently of each other.
• It can provide 2A current per channel.
• It has a built-in regulator.
• It has high temperature and short circuit protection.
• There are LEDs that light up according to the direction of motor rotation.
• There is a built-in cooler on the card.
• The current sense pins are exported.
• There are 4 screw holes on the 4 sides of the card that you can fix to the desired surface.

Pin Connections:

• ENA: Pin for activating the left motor channel
• IN1: Left engine 1. entrance
• IN2: Left engine 2. entrance
• IN3: Right engine 1. entrance
• IN4: Right engine 2. entrance
• ENB: Pin for activating the right engine channel
• TO THE ENGINE: Left engine outlet
• MotorB: Right motor output
• VCC: Supply voltage input(4.8V-24V)
• GND: Ground connection
• 5V: 5V output
